Sunswell – 80000bph good prices 4 head 1 gallon mini small aseptic milk coffee juce juice tea hot bottle filling machine

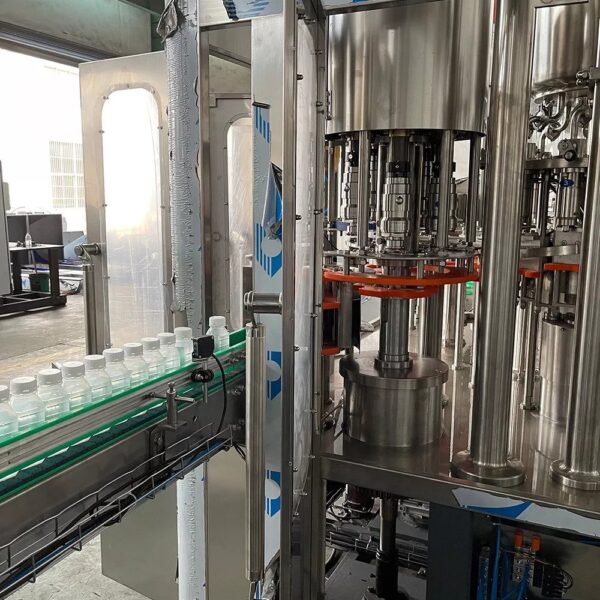

The machine is mainly used for washing/filling/capping PET bottle juice, tea drinks and all kinds of energy drink for hot filling.Only need to change a few spare parts, that can suitable for filling pure water and mineral water.

Application :

Fruit juice, NFC juice,energy drinks, ice tea drinks, coffee beverage,pulp juice , flavored milk , sports beverage drink,ginger
drink , flavored water drinks. Apple juice ,Orange juice, cherry juice, mango juice ,tomato juice, pineapple juice, guava juice,passion fruit drinks ,papaya juice

Technical Parameters:

Model
(RXGF)
14-12-5
16-16-5
24-24-6
32-32-8
40-40-10
50-50-12
60-60-15
72-72-15
Capacity
(500ML)
5000
7000
10000
15000
18000
22000
24000
30000
Suitable bottle (mm)
φ=50-110=170 330-2250ml
Washing pressure
2-3(kg/cm 2 )
Main Motor power
2.2kw
2.2kw
3kw
5.5kw
7.5kw
11kw
15kw
19kw
Dimensions (mm)
2400×1650×2500
2600×1920×2550
3100×2300×2800
3800×2800×2900
4600×2800×2900
5450×3300×2900
6500×4500×2900
7680×6640×2850
Weight (kg)
2500
3500
4500
6500
8500
9800
12800
15000

Main configurations:

1. Material of filling valve: Stainless steel 316L available
2. Material of rotary tray and machine platform of rinser and filler: Stainless steel 304.
3. Main motor: ABB/SEW (Germany)
4. Sliding bearing: Igus (Germany)
5. Frequency inverter: MITSUBISHI (Japan)
6. Touch screen: DIGITAL (Japan).
7. PLC: MITSUBISH (Japan)
8. Pneumatic components: FESTO (Germany)
9. Seals: Busak+Shamban (USA)
10. Photocell switch: BANER (USA).
11. Proximity switch: TURCK (Germany).

Main Structure:

1. Rinsing system: Combined with rotary tray with clamp, water distributing tray, water tank and rinsing pump.

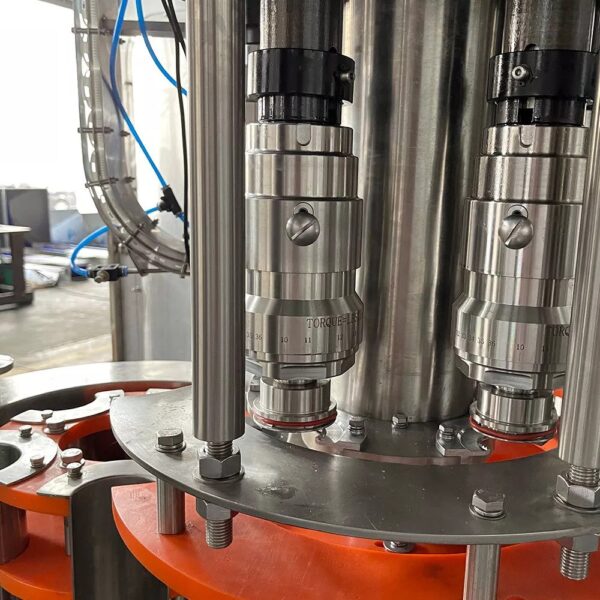

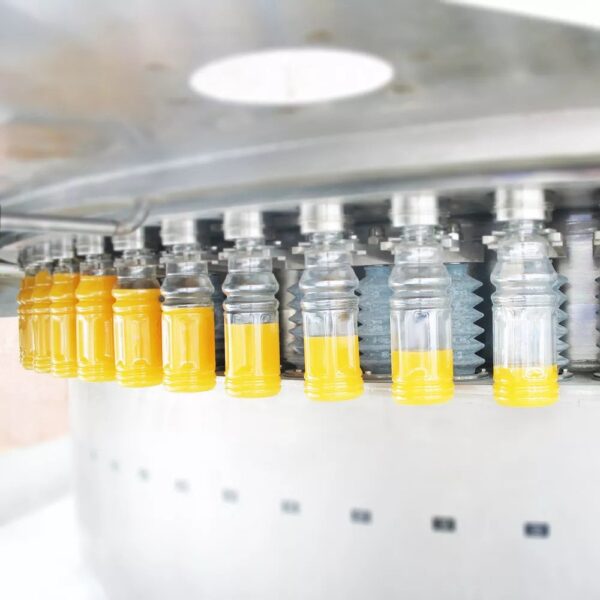

2. Filling system: Combined with hydraulic, filling valve, controlling ring, and elevator-cylinder.
3. Capping system: Combined with capper, cap sorter and cap falling track.
4. Driving system: Combined with main motor and gears.

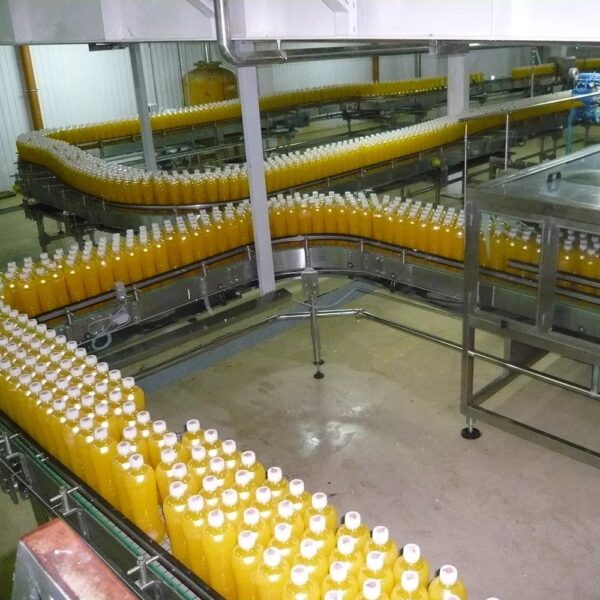

5. Bottle transmitting system: Combined with air conveyor, steel starwheels and neck supporting carrier plates.
6. Electrical controlling system: this part is frequency inverted, PLC controlled and touch screen operated.
