Appliance scope
For various metal cans, glass bottles, plastic bottles for layered depalletizing.
Depalletizer Machine’s advantage is could independent finish full pallet lift up and down, Whole Layer Clamping and moving forwards,bottles or cans conveying by conveyor works in continuously and automatically.
Also could according to client’s different products special requirement to improve design for achieved film wrap works.
Machinery Structure
Full pallet conveyor, pallet life device, whole layer cans pushing trolly, isolate remover, empty pallet stacker.
Advantages
1. High performing
2. Reliable
3. Flexible (in terms of container, format and pallet)
4. Quick and easy format changeover
5. Completely automated
6. Fully customizable
7. High operator safety standards
Appliance scope
For various metal cans, glass bottles, plastic bottles for layered depalletizing.
Depalletizer workflow and principles
1. Forklift put the whole stack cans/bottles into unstacking station (hydraulic lift table)
2. Chain lifter will transit the packed pallet to the upper most of the depalletizer.
3. Four sides clamps will hold the uppermost whole layer cans or bottles from four sides, moving in parallel to the outlet multi lane conveyor.
4. The the four sides cylinder clamps will back to original position.
5. Pneumatic absorb hands will absorb the next layer top side isolate pad, move the pad to pad collector.
6. Chain lifter, hold the board rise to a certain height crib.
7. Do the same procedure until the last layer, hydraulic lifts pallet fell to bottom, then transit to empty pallets stacker.
8. Forklift remove the empty pallet.
Specification
Technical parameters
Model: XD600
Capacity: 36000CPH (330ml)
Feed adjustable: +/-50mm
Platform: carbon steel
Conveyor height: 3100mm
Pallet height: 2800mm
Workshop height: 4500mm
Empty pallet stacker: ten pallets
Pallet size: L1420mm*W1120mm*H150mm (customized)
Overall dimension: L5800mm*W1350mm*H3700mm
Weight: 3700kg
Power
Power supply: 380V, 50Hz, 3PH
Total power: 2.05KW

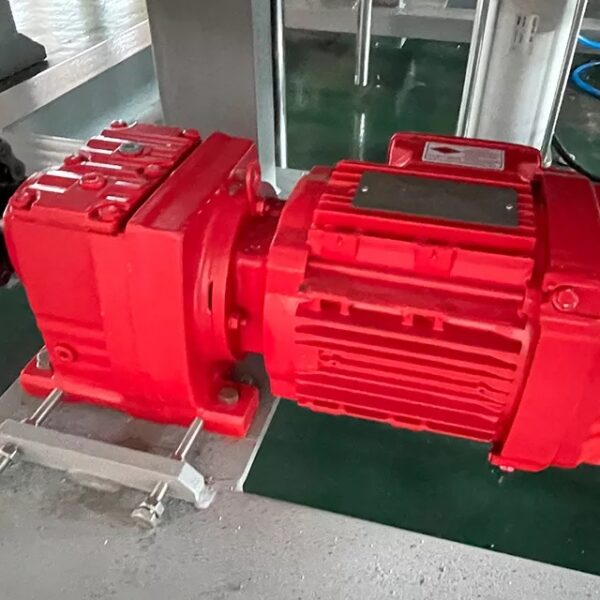

Main motor: 0.75KW
Can conveyor motor 1: 0.75KW
Can conveyor motor 2: 0.75KW
