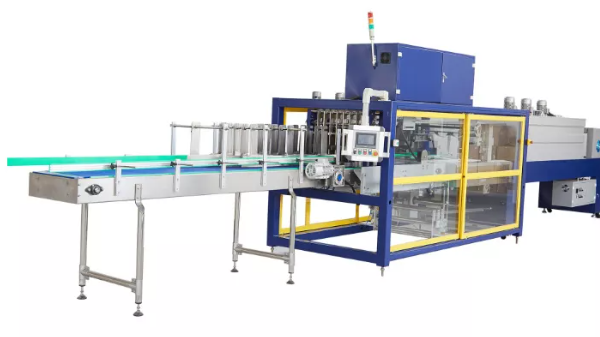

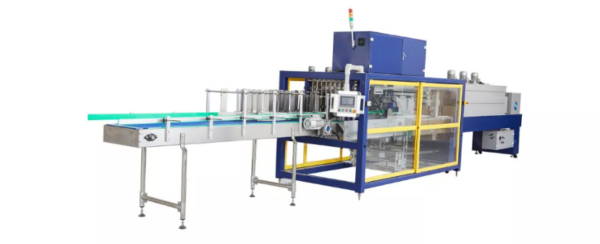

Fully automatic shrink wrapping package machine

All kinds of liquid beverage bottles’ group packing which does not need bottom tray. After packing, the products will become firmer and more good looking.

Characteristics:

1.This Shrink Wrapping Machine adopts imported world famous PLC automatic control. It has stable functions and precise control.

2.It has automatic functions like conveying materials, unscrambling, shrinking and cooling&design finalizing flow.

3.The film conveying adopts the famous brand transducer and three-layer heat insulation to save resourses.

4.It uses the enhanced cooling and design finalizing passage which can make product packing finalize the design more quickly and easy to be stored and transported

ses unique air circulation system,smooth conveyor belts,providing long lasting service.

PRODUCT SPECIFICATIONS:

Model
SSW
Machine Dimension
L16390mm*W1800mm*H2500mm
Shrinkage Tunnel Dimension
L2500mm*W700mm*H450mm
Max Package Dimension
L460mm*W280mm*H345mm
Packing Speed
30pcs/min
Transfer Belt Width
686mm
Work Voltage/Power
3Phase5Line 380V 60Kw
Work Air Pressure
0.6-0.8Mpa
Air Consumption
80NL/min-100NL/min
Total Weight
5200KG
