With compact design and small occupied space, this type of metal detector is suitable for the detection of powder, granule or other forms of bulk products.

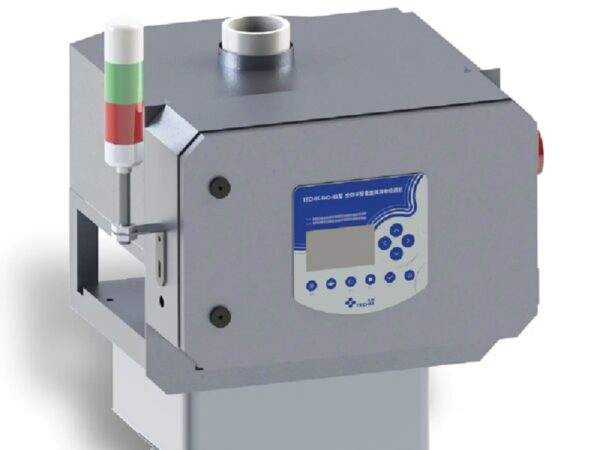

*Gravity Fall Metal Detector
With compact design and small occupied space, this type of metal detector is suitable for the detection of powder, granule or other forms of bulk products.
*GR
|
Model |
IMD-P |
||||||
|
Detection Diameter(mm) |
Detection Capacity t/h2 |
Rejecter Mode |
Pressure Requirement |
Power Supply |
Main Material |
Sensitivity1Φd (mm) |
|
|
Fe |
SUS |
||||||
|
75 |
3 |
Automatic flap rejecter |
0.5Mpa≥ |
AC220V (Optional) |
Stainless steel (SUS304) |
0.5 |
0.8 |
|
100 |
5 |
0.6 |
1.0 |
||||
|
150 |
10 |
0.6 |
1.2 |
||||
|
200 |
20 |
0.7 |
1.5 |
||||
*Note:
1. The technical parameter above namely is the result of sensitivity by detecting only the test sample inside the pipe. The sensitivity would be affected according to the products being detected and working condition.
2. Detecting capacity per hour is related with product weight, the value of the table is according to the density of water (1000kg/m3).
3. Requirements for different sizes by customers can be fulfilled.
